Productdetails
Plaats van herkomst: Guangdong China
Merknaam: Shareway
Certificering: CE UL RoHS ISO9001:2008
Modelnummer: Mox-spil-0402
Betaling & het Verschepen Termijnen
Min. bestelaantal: 100/500/1000
Prijs: Supportive
Verpakking Details: Reel
Levertijd: Voorraad of 3 weken
Betalingscondities: TT, Paypal
Levering vermogen: 3000K.PCS/Month
Naam van het product: |
Mox-spil-0402 beschermde machtsinductors voor LCD televisies en digitale camera's |
Toepassing: |
LCD televisies en digitale camera's |
Type: |
beschermde machtsinductors |
Maat: |
6.6*4.45*2.93mm |
Zelfinductie: |
1.0 - 10000uH |
Bedrijfstemperatuur: |
-40°C aan +85°C |
Naam van het product: |
Mox-spil-0402 beschermde machtsinductors voor LCD televisies en digitale camera's |
Toepassing: |
LCD televisies en digitale camera's |
Type: |
beschermde machtsinductors |
Maat: |
6.6*4.45*2.93mm |
Zelfinductie: |
1.0 - 10000uH |
Bedrijfstemperatuur: |
-40°C aan +85°C |

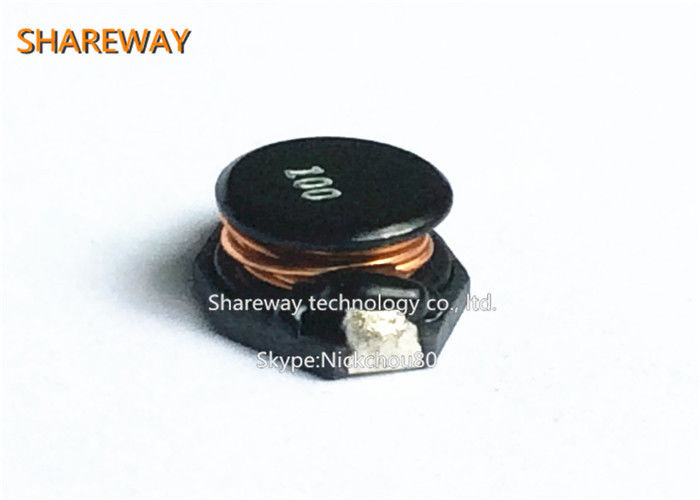

Mox-spil-0402 beschermde machtsinductors voor LCD televisies en digitale camera's
Beschrijving:
Spil-0402 zetten de reeksen van oppervlakte beschermde machtsinductors op zijn
wijd gebruikt in PDA, notitieboekjes, LCD televisies en digitale camera's.
Eigenschappen:
• Lage kosten.
• Met platte kop voor oogst & plaatsmachines.
• Beschikbare Tolerantie: ±10% & ±20%.
• Volgzame RoHS.
• Magnetisch beschermde toepassingen.
Artikelnummer | Inductantie (μH) |
Tolerantie (%) |
DCR (Ω) Maximum |
Irms Max. (a) |
L Testfrequentie |
Mox-spil-0402-1R0M | 1.0 | 20% (m) | 0,040 | 3.00 | kHZ 100 |
Mox-spil-0402-1R5M | 1.5 | 20% (m) | 0,045 | 2.80 | kHZ 100 |
Mox-spil-0402-2R2M | 2.2 | 20% (m) | 0,050 | 1.80 | kHZ 100 |
Mox-spil-0402-3R3M | 3.3 | 20% (m) | 0,055 | 1.60 | kHZ 100 |
Mox-spil-0402-4R7M | 4.7 | 20% (m) | 0,065 | 1.40 | kHZ 100 |
Mox-spil-0402-6R8M | 6.8 | 20% (m) | 0,070 | 1.20 | kHZ 100 |
Mox-spil-0402-100M | 10 | 20% (m) | 0,075 | 1.00 | kHZ 100 |
Mox-spil-0402-150M | 15 | 20% (m) | 0,090 | 0,80 | kHZ 100 |
Mox-spil-0402-220M | 22 | 20% (m) | 0,11 | 0,70 | kHZ 100 |
Mox-spil-0402-330M | 33 | 20% (m) | 0,19 | 0,60 | kHZ 100 |
Mox-spil-0402-470M | 47 | 20% (m) | 0,23 | 0,50 | kHZ 100 |
Mox-spil-0402-680M | 68 | 20% (m) | 0,29 | 0,40 | kHZ 100 |
Mox-spil-0402-101M | 100 | 20% (m) | 0,48 | 0,30 | kHZ 100 |
Mox-spil-0402-151M | 150 | 20% (m) | 0,59 | 0,26 | kHZ 100 |
Mox-spil-0402-221M | 220 | 20% (m) | 0,90 | 0,22 | kHZ 100 |
Mox-spil-0402-331M | 330 | 20% (m) | 1.40 | 0,20 | kHZ 100 |
Mox-spil-0402-471M | 470 | 20% (m) | 1.80 | 0,19 | kHZ 100 |
Mox-spil-0402-681M | 680 | 20% (m) | 2.20 | 0,18 | kHZ 100 |
Mox-spil-0402-102M | 1000 | 20% (m) | 4.20 | 0,15 | kHZ 100 |
Mox-spil-0402-152M | 1500 | 20% (m) | 4.20 | 0,12 | kHZ 100 |
Mox-spil-0402-222M | 2200 | 20% (m) | 8.50 | 0,10 | kHZ 100 |
Mox-spil-0402-332M | 3300 | 20% (m) | 11.00 | 0,08 | kHZ 100 |
Mox-spil-0402-472M | 4700 | 20% (m) | 13.90 | 0,06 | kHZ 100 |
Mox-spil-0402-682M | 6800 | 20% (m) | 25.00 | 0,04 | kHZ 100 |
Mox-spil-0402-103M | 10000 | 20% (m) | 32.80 | 0,02 | kHZ 100 |
Mox-spil-0402 beschermde machtsinductors voor LCD televisies en digitale camera's
Vorm en Afmetingen:
